Raritan aloitti KVM- ja PDU-tuotteiden kehityksen vuonna 1985. Nykyään Legrand-konsernin alla toimiva valmistaja on alansa johtavia valmistajia älykkäissä PDU- ja energianmittaustuotteissa. Yhdeksän kymmenestä Fortune 500 yrityksessä käyttää konesaleissaan Raritanin tuotteita. Raritanilta laaja mallisto älykkäitä räkki PDU:ta.
www.raritan.com

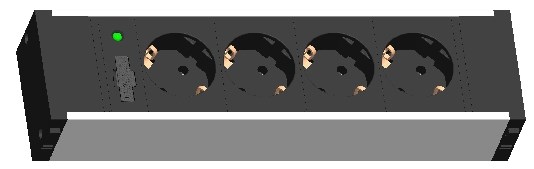

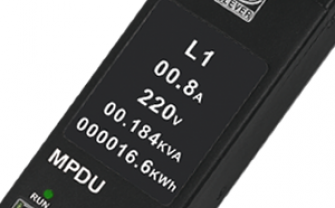

Vuonna 1995 perustetulla Shenzhen Clever Electronicilla on kahdenkymmenen vuoden kokemus virranjako- ja PDU-tuotteiden valmistamisesta. Yrityksellä on ISO9001, ISO14001, IECQ QC080000 ja OHSAS18001 sertifikaatit, useita alan patentteja ja se on toimittanut vuosien ajan perus PDU-tuotteita eri brändeille ja erilaisiin sovelluksiin. Cleverin tarjonnasta löytyvät kustannustehokkaat perus PDU:t tai PDU:t mittauksella.
www.china-clever.com

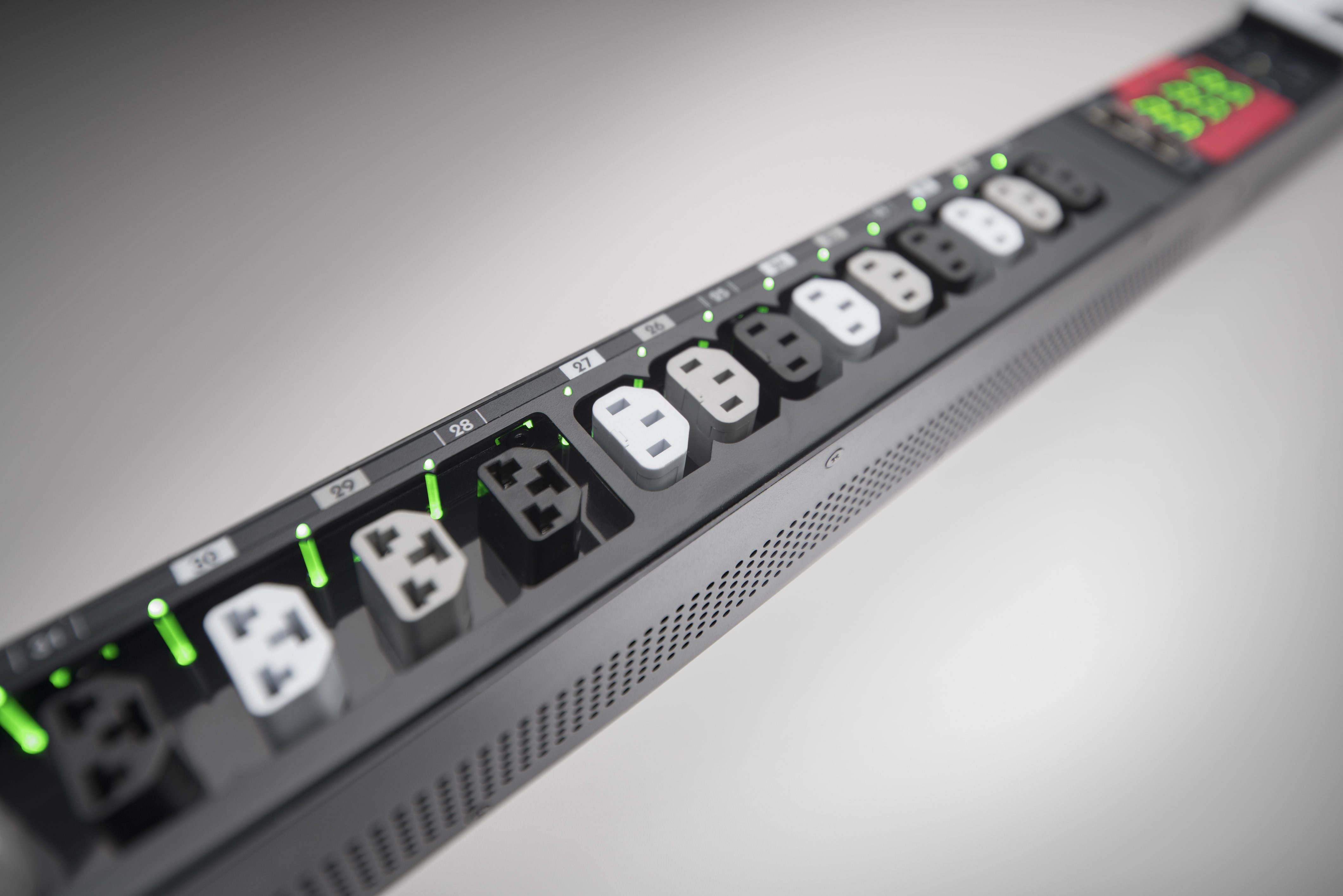

Server Technologyn tuotteista löytyy erityisversioita tasavirtajärjestelmiin. Yritys on ollut mukana kehittämässä monia PDU-innovaatioita, joista yhtenä on Cx-liitinrunko, joka toimii samalla sekä C13 että C20 lähtönä. Server Technology kuuluu Legrand-konserniin.
www.servertech.com

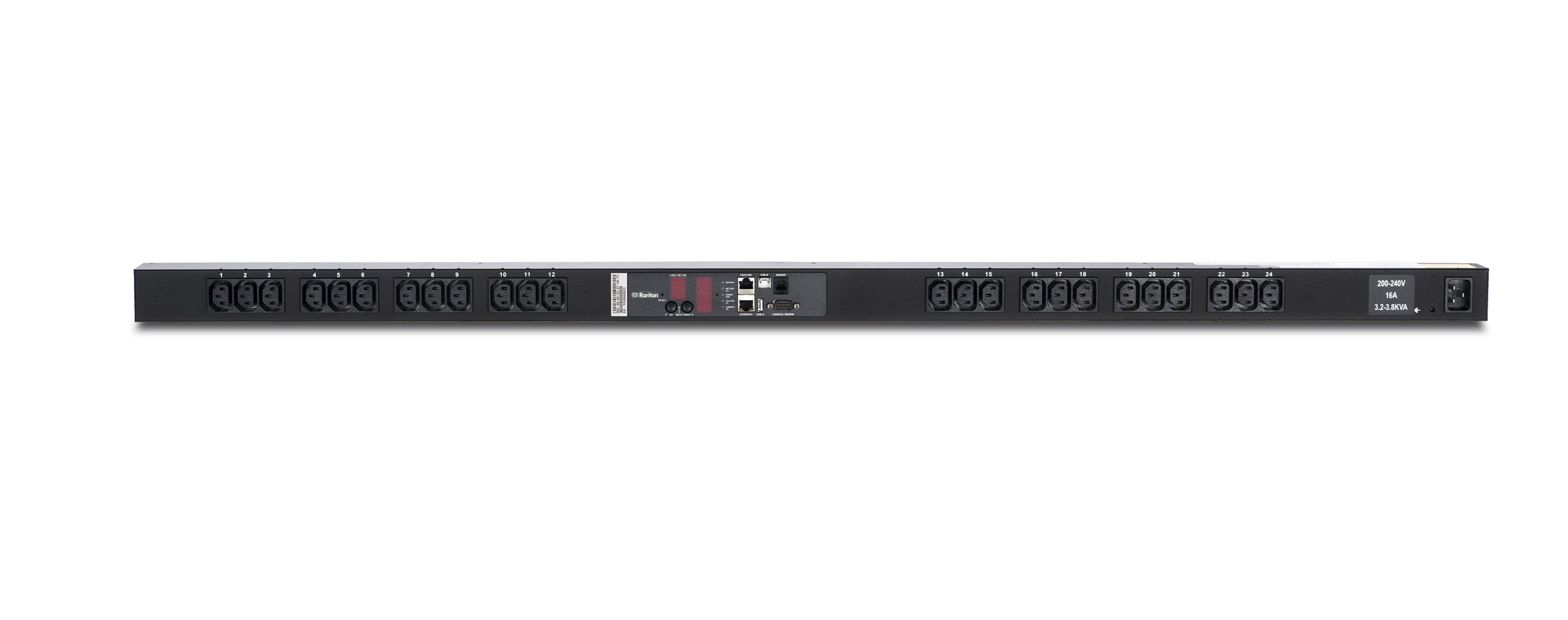

BUILT-IN FAILOVER POWER
Using the expansion port available on some PX models, maintain network connectivity and
power between two connected PDUs. Outage alerts lead to faster remediation, allowing
you to maintain full control over the peripherals connected to your PDU and devices
cascaded downstream.
CIRCUIT BREAKER TRIP ALARMING
Standard on all PX intelligent PDUs, circuit breaker trip alarming enables detailed power
management for every branch circuit of your PDU—know which circuit breaker has tripped
and why with voltage and current monitoring. While facility branch circuit monitoring won’t
detect power supply failure on a server, Raritan’s circuit breaker trip detection in the cabinet
will alert you immediately.
ENERGY EFFICIENT LATCHING RELAYS
PX 5000 Series PDUs are equipped with bi-state latching relays, making outlet switching
safer while consuming 70% less energy than conventional alternatives. Sophisticated outletsequencing
can power on outlets individually or in groups, in a prescribed order, to minimize
in-rush current overloading. Alternatively, latching relays can be configured to retain its
on/off state permanently—so that critical power is maintained even in the case of PDU failure.
REMOTE POWER CONTROL / OUTLET LEVEL POWER MANAGEMENT
Easily control what equipment is connected to the PDU, keep outlets switched off to prevent
unauthorized access, ensure proper provisioning, and avoid tripped circuit breakers. Remote
power controls can be used to reboot hung servers or provision outlets for new devices
without ever having to step foot in the facility.
RESIDUAL CURRENT MONITORING OPTION
By measuring current flowing in the ground wire, the residual current monitoring
option reduces the risk of electric shock. Residual currents generate a system alert,
keeping technicians safe. By providing automated and remote testing, PDUs equipped
with residual current monitoring dramatically reduce the burden of regulatory auditing
in many jurisdictions.
DUAL NETWORK ACCESS
Equipped with two Ethernet ports, PDUs with iX7 controllers can be accessed on two
separate networks. Infrastructure managers, co-location facility staff, or IT administrators
can all see the same critical energy and environmental data provided by your PX, even if
they’re on different networks or VLANs.
STANDARD GIGABIT ETHERNET PORT
Raritan’s iX7 generation controller provides standard gigabit Ethernet for seamless connectivity to modern switching infrastructure. It will ease your PDU’s implementation in any data center environment, and allow for future network topologies.
SIMPLIFIED, FAST DEPLOYMENT
Flexibility is at your fingertips when deploying PX intelligent PDUs. Configure hundreds or thousands of individual PDUs using methods ranging from the simple insertion of standard USB flash drives to sophisticated network-based tools: TFTP, PXE over DHCP, JSON-RPC, and others.
WIFI CONNECTIVITY
Run out of network drops? No problem. With USB WiFi, Raritan intelligent PDUs can be networked and cascaded without additional expense.
EXTENDED CASCADING
Using the Ethernet port (on iX7 controllers) or USB ports, PDUs can be easily cascaded to mix and match connections and save money on IP drops, Ethernet ports, and patch ports.
Save costs while commissioning new racks and new equipment, and gain speed and flexibility with the most open connectivity features in any PDU.
DUAL USB PORTS
Extremely versatile USB ports enable simultaneous connectivity to iPad / iPhone / Android interfaces, rapid configuration of PDUs, mass firmware updates, WiFi connectivity, and built-in webcam security features. Just as importantly, the interfaces will continue to expand the PDU’s capabilities well into the future, with regular and free updates to the PDU onboard software. This hardware design enables advanced features while
delivering the simplest product to use.
400V THREE-PHASE MODELS
Raritan’s broad range of 400V three-phase high power models support up to 55kW per rack PDU. Running higher voltages at lower currents means smaller and fewer cables, less copper, less weight, less space, and lower costs. Plugs and receptacles are also less expensive at higher voltages and lower current ratings, with additional savings achieved by eliminating
voltage transformations.
60°C (140°F) MAX TEMP
Although many data centers monitor cold aisle temperatures to provide optimal cooling for IT equipment, most rack PDUs are located at the rear of the rack where exhaust temperatures from IT equipment are much higher. Raritan’s intelligent PDUs support a maximum operating temperature of up to 60°C / 140°F for reliable performance in dense, high-heat environments. Even in the harshest conditions, PX intelligent PDUs continue to operate reliably.
TERMINAL BLOCK ACCESSIBLE OPTION
PX PDUs with a terminal block accessible option can save operators thousands of dollars by eliminating the need for plugs, connectors, and excess cables. Simply remove the outer cover from your PDU for quick access to the terminal block and wire the unit directly to an existing power whip.
